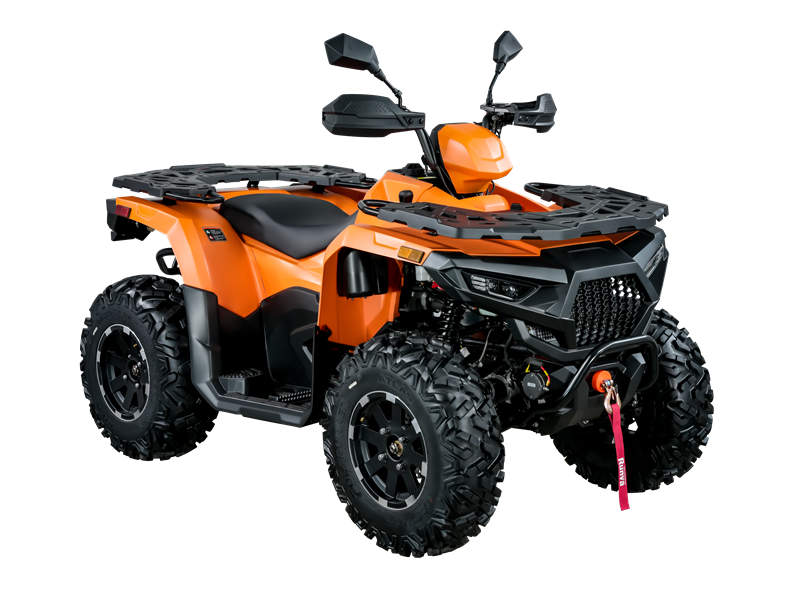

TCROSSER 300

2wd

    The ATV300 2WD delivers a balanced combination of responsive performance, easy handling, and everyday practicality.

    Powered by a 270.5cc liquid-cooled engine with electronic fuel injection, it provides smooth and dependable power for recreational riding, property maintenance, and light-duty work.

    Its lightweight design, 2WD drivetrain, and independent front suspension make it easy to maneuver across trails and everyday terrain. With a 2,000 lb winch, practical cargo capacity, and a top speed of 85 km/h, the ATV300 2WD is built to handle the jobs that come your way while keeping every ride enjoyable.



2wd

4wd



4wd

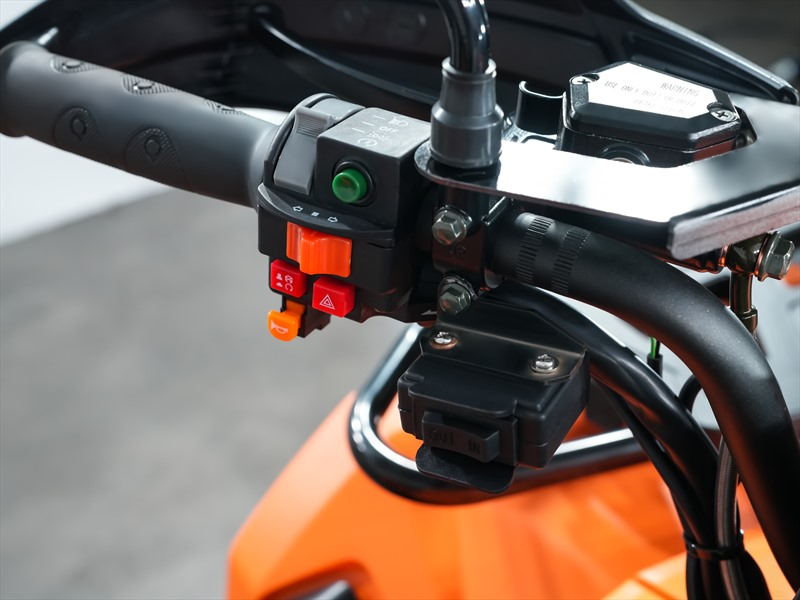

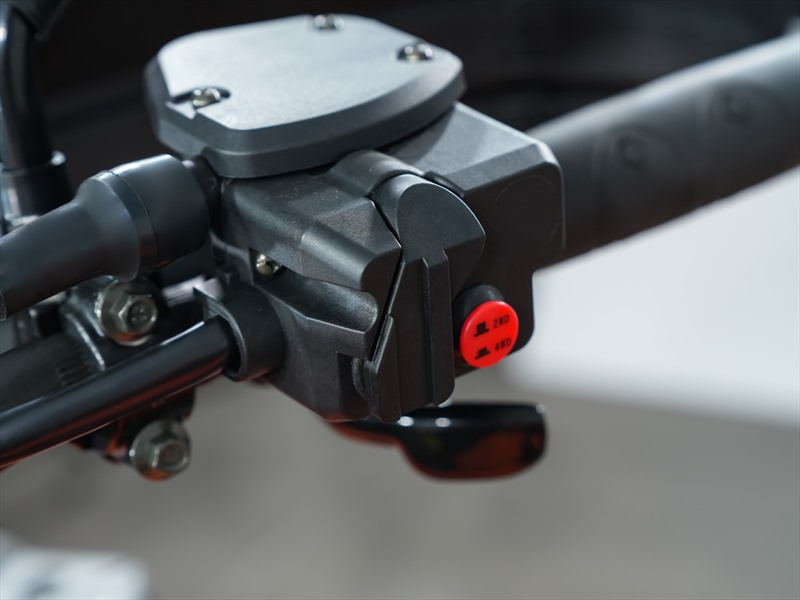

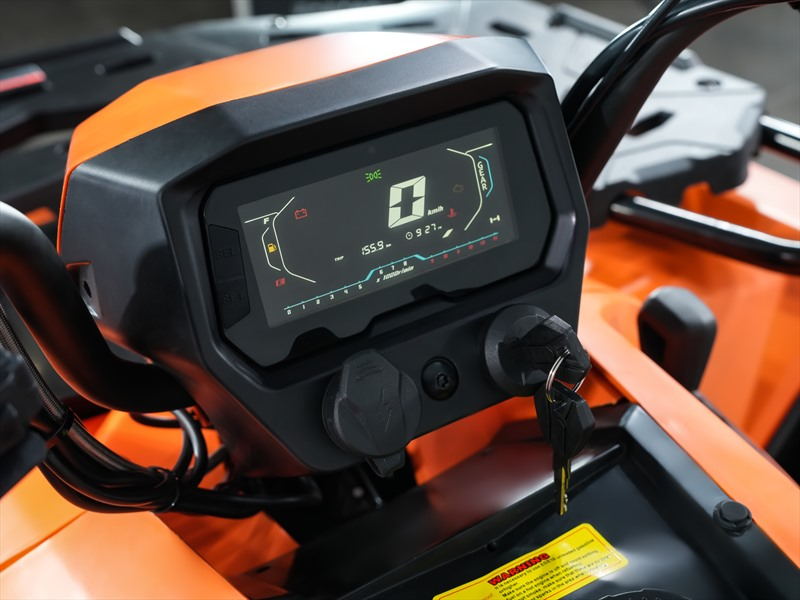

Ergonomic Controls & Integrated Electronics

Features an ergonomic handlebar layout with intuitive switchgear, optional EPS (Electric Power Steering) for easier maneuvering, and a front storage tray with a charging port for navigation devices.

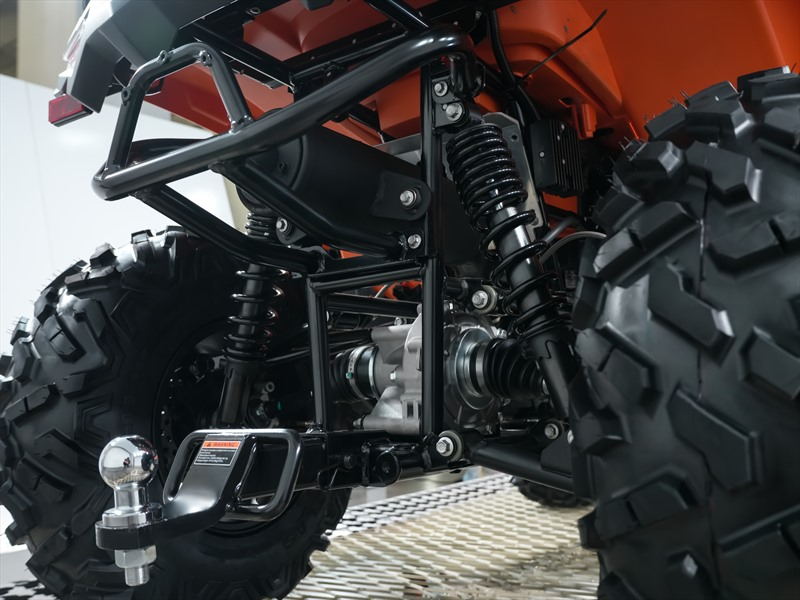

Long-Travel Suspension & Off-Road Chassis

Equipped with heavy-duty coil-over shocks and aggressive mud tires. Combined with high ground clearance and protective underbody skid plates, it is designed to absorb impacts and handle rugged terrain, mud, and water crossings.

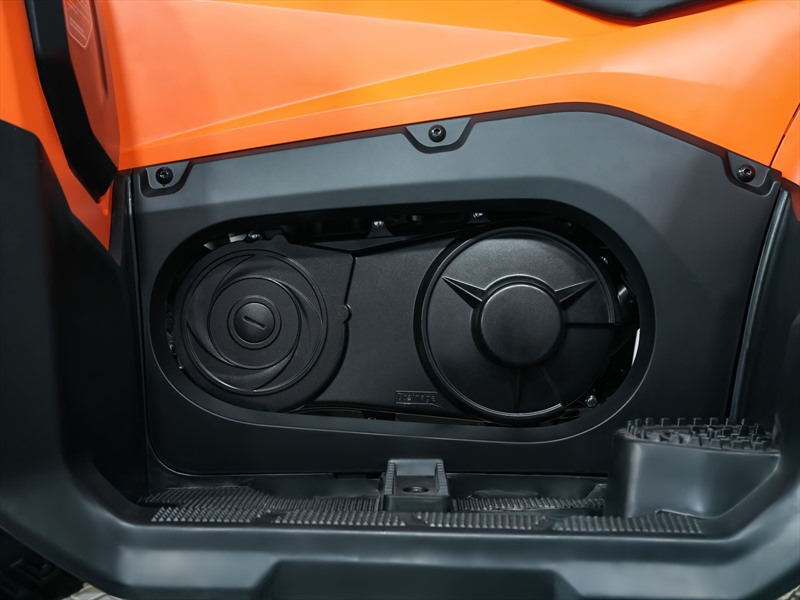

525cc EFI Engine & Sealed CVT Drivetrain

Powered by a reliable 525cc Electronic Fuel Injection (EFI) engine. The fully sealed CVT transmission housing prevents water and dust ingress, delivering smooth, consistent low-end torque while ensuring durable protection for the belt system.

El Tigré

Vehicle Specs

TCROSSER 300
Engine Type
Single Cylinder,4-Stroke
Engine Displacement
270.5
Cylinder Bore × Stroke
N/A
Fuel System
EFI
Max Power
15.6kW/7000rpm
Max Torque
23.5N.m/5500rpm
Cooling System
Liquid Cooled
Starter
Electric
Transmission
CVT,L-H-N-R-P
Front/Rear Suspension
Double A-Arm Independent/Single swing arm
Front/Rear Suspension Travel
Preloaded, Oil Damped

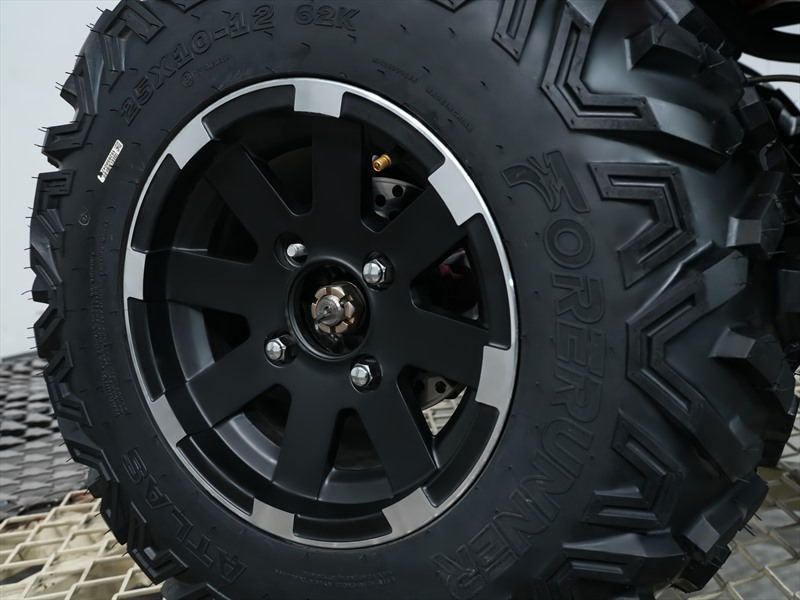

Front Rim/Tires
Steel Wheel 25x8-12
Rear Rim/Tires
Steel Wheel 25x10-12
Shocks
Disc brake
LengthxWidthxHeight
2020x1060x1170mm
Wheelbase(mm)
1226mm
Front Tread (mm)
950mm
Rear Tread (mm)
840mm
Ground Clearance
200mm
Winch
N/A
Rack Capacity
N/A
Battery
2
Fuel Capacity
12L
Dry weight (Total Mass of Components)
281kg
Curb Weight (Tare weight with fluids)
293kg
Max Carrying Capacity (Max Occupant Load,75kg/person)
155kg
Gross Vehicle Weight (Includes passengers,Cargo,and Fuel)
448kg
Towing Capacity
260kg/505kg
Max Speed
85km/h
Turning Radius
3m
Container Loading
36/33PCS/40HQ
Crate Dimensions
1970*1160*845/2000*1160*845
Gross Crate Weight (Total Packed Weight)
336kg
Net Weight (Vehicle without Fuel/Accessories)
284
Standard color
Grey, Orange,black,Green
Review Mirror
Standard
Front Winch
Standard
Side Fenders
Standard
Seat Backrest
Standard
25'' Tire
Standard
