UCROSSER 550

    Compact Single-Cylinder Utility Vehicle with Nimble Handling and High Payload

    The UCROSS 550 is powered by a 495.3cc single-cylinder, 4-stroke EFI engine, delivering 32kW of max power and 46N.

    m of torque. Featuring a CVT transmission (L-H-N-R-P) and preloaded oil-damped shocks, it offers a nimble 4.6m turning radius and 275mm of ground clearance, making it exceptionally agile in tight spaces.

    With a 35L fuel tank, a 800kg towing capacity, and a 250kg cargo bed, this compact model is a highly efficient, cost-effective, and practical solution for property maintenance and utility tasks.

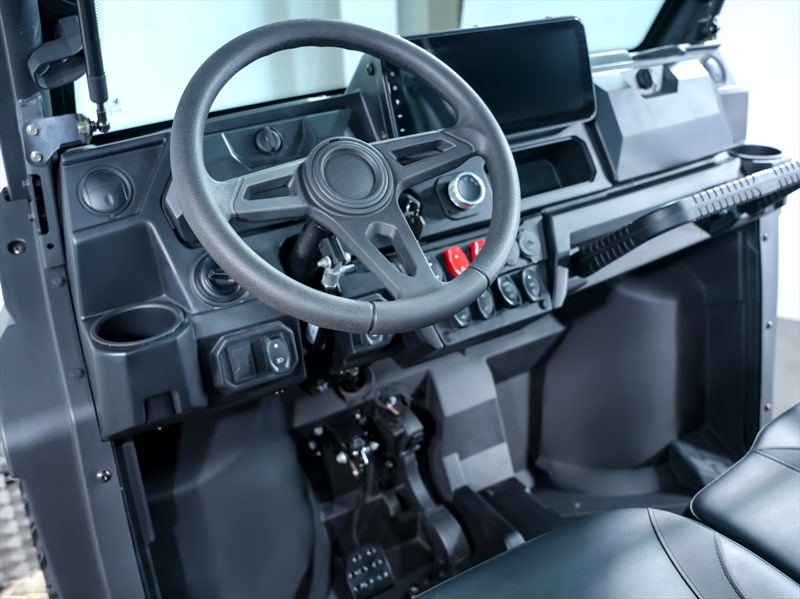

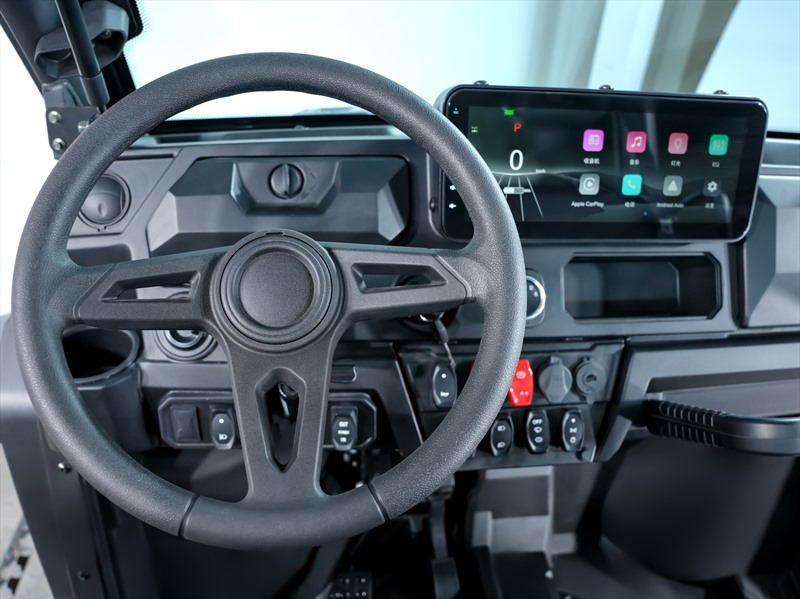

1.Smart Digital Cockpit with Integrated Connectivity

Equipped with a large, high-resolution touchscreen display that supports Apple CarPlay and Android Auto, providing seamless smartphone integration for navigation, media, and vehicle diagnostics. The ergonomic dashboard features a multi-function steering wheel, central gear selector (L-H-N-R), and a dedicated 12V auxiliary power outlet, ensuring intuitive and convenient operation for the driver.

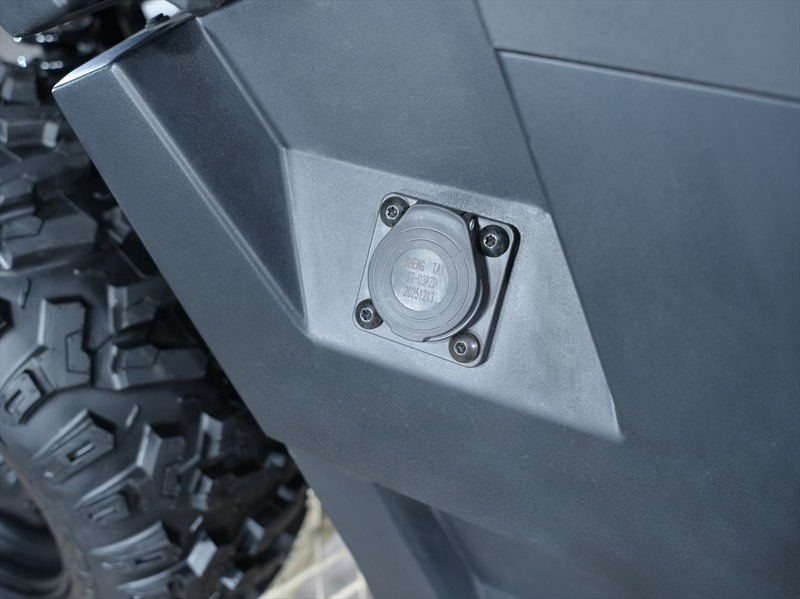

Convenient Fast-Charging Port Design

Features a waterproof, dust-proof charging interface integrated seamlessly into the rugged side bodywork. This allows for easy and safe access to charge the 96V/50AH Lithium Iron Phosphate (LiFePO4) battery pack, designed to withstand harsh outdoor environments while ensuring a reliable and efficient charging process.

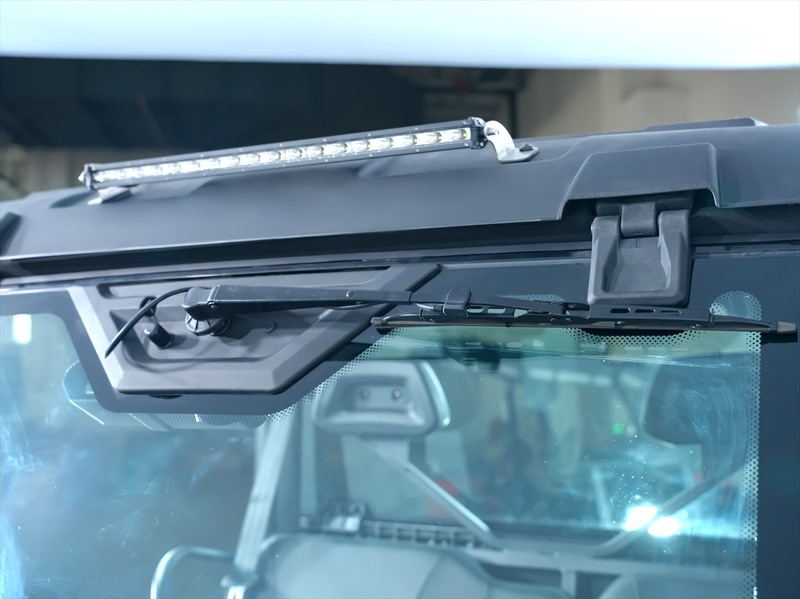

3.Integrated LED Lighting Bar & Windshield System

Designed for low-light visibility and all-weather operation. The vehicle is equipped with a high-intensity LED light bar mounted on the roof bar for superior trail illumination, along with a factory-installed windshield and wiper assembly. These components provide clear visibility and weather protection, enhancing safety during nighttime operation or rainy conditions.

El Tigré

Vehicle Specs

UCROSSER 550
L×W×H (mm)
2910×1460×1993
Wheelbase (mm)
1963
Minimum ground clearance (mm)
275
Max speed (km/h)
85
Rack capacity
250kg (551lbs)
Fuel tank capacity (L)
35
Bed dimension (mm)
800×1080×286
Engine Type
Single Cylinder, 4-Stroke
Displacement (ml)
495.3
Maximum power (kW)
28 @ 6800 r/min
Maximum torque (N·m)
46 @ 5800 rpm
Transmission way
CVT (L-H-N-R-P)
Drive train
2WD-4WD
Front brake
Disc
Rear brake
Disc
Parking brake
Manual
Front Wheel
25×8-12
Rear Wheel
25×10-12
Aluminum alloy rim
Not applicable
Steel rim
Standard
Seats number
3 seats
Collapsible
No
Front/Rear Suspension
Double A-Arm Independent
Shocks
Preloaded, Oil Damped
