TCROSSER 625

    The TCROSS 625 is built to deliver confident performance across demanding trails and everyday tasks. Its 580cc single-cylinder, liquid-cooled engine produces 35 kW of power and 55 N·m of torque, providing strong and responsive performance when you need it most. With selectable 2WD/4WD, 265 mm of ground clearance, long-travel independent suspension, and aggressive 25-inch tires, the TCROSS 625 is ready for rough and unpredictable terrain. Front and rear cargo racks, a 3,500 lb winch, and a 600 kg towing capacity add the versatility needed for serious work and extended adventures.

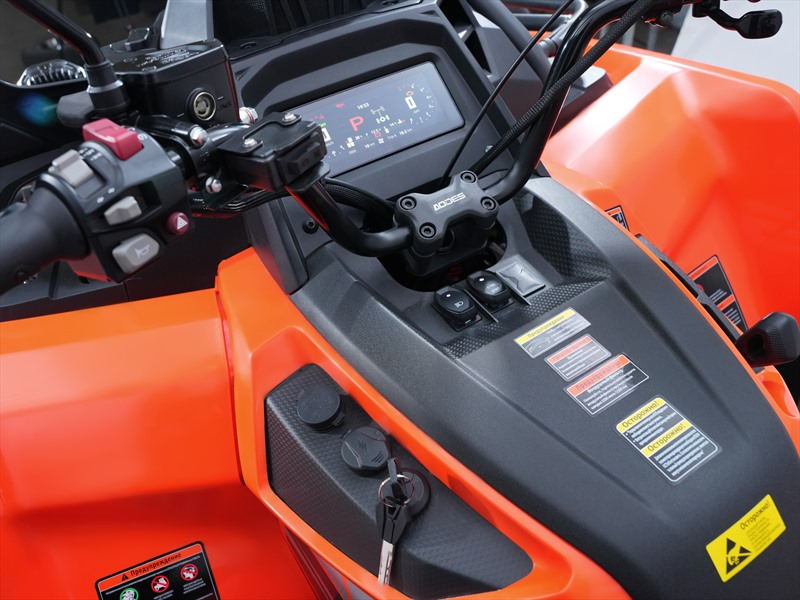

INTUITIVE CONTROLS

The TCROSS 625 is built to deliver confident performance across demanding trails and everyday tasks. Its 580cc single-cylinder, liquid-cooled engine produces 35 kW of power and 55 N·m of torque, providing strong and responsive performance when you need it most.

With selectable 2WD/4WD, 265 mm of ground clearance, long-travel independent suspension, and aggressive 25-inch tires, the TCROSS 625 is ready for rough and unpredictable terrain.

Front and rear cargo racks, a 3,500 lb winch, and a 600 kg towing capacity add the versatility needed for serious work and extended adventures.

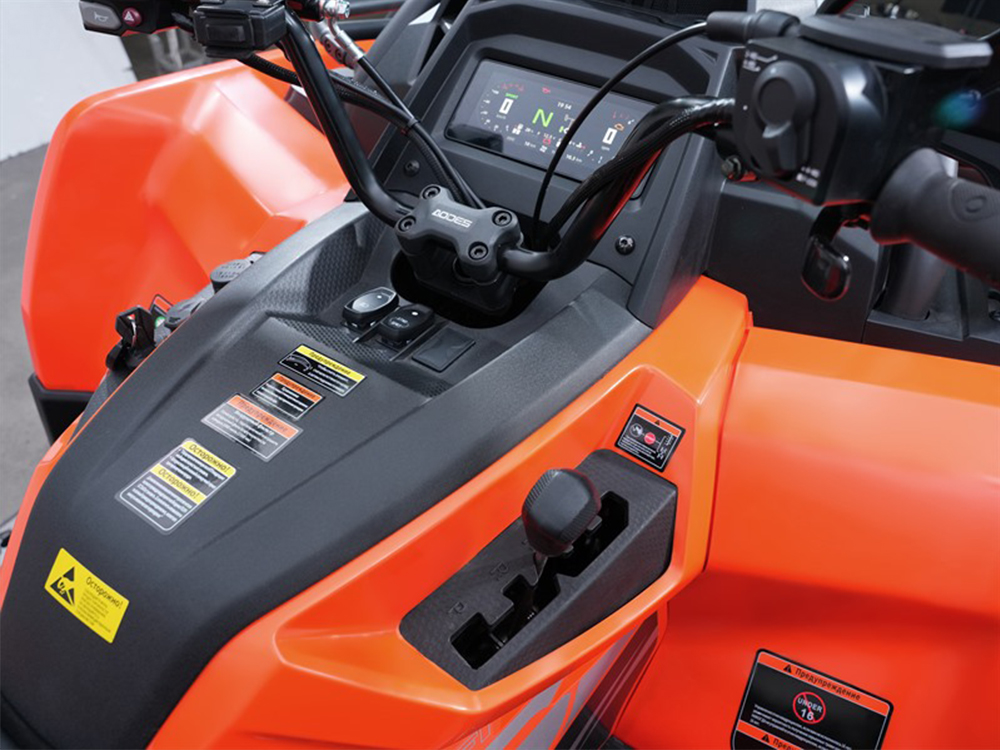

CONVENIENT OPERATION

The TCROSS 625 is built to deliver confident performance across demanding trails and everyday tasks. Its 580cc single-cylinder, liquid-cooled engine produces 35 kW of power and 55 N·m of torque, providing strong and responsive performance when you need it most.

With selectable 2WD/4WD, 265 mm of ground clearance, long-travel independent suspension, and aggressive 25-inch tires, the TCROSS 625 is ready for rough and unpredictable terrain.

Front and rear cargo racks, a 3,500 lb winch, and a 600 kg towing capacity add the versatility needed for serious work and extended adventures.

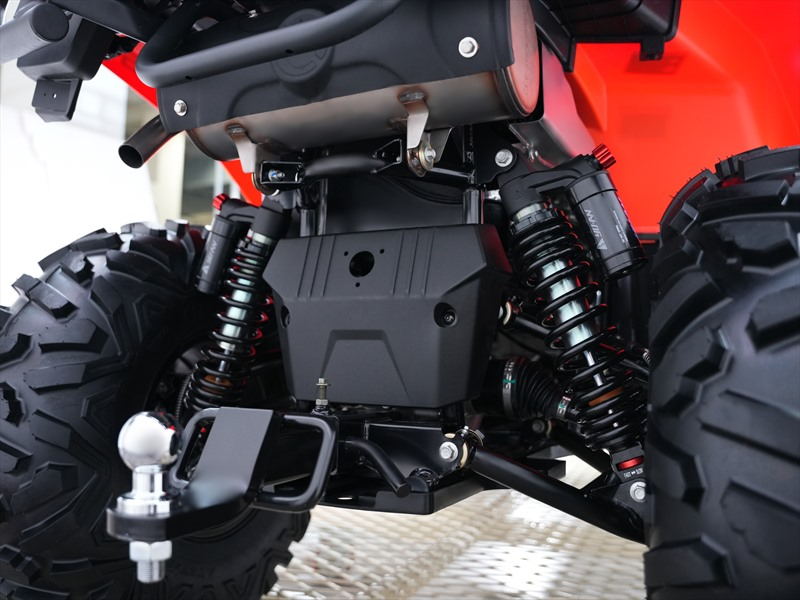

LONG-TRAVEL SUSPENSION

The TCROSS 625 is built to deliver confident performance across demanding trails and everyday tasks. Its 580cc single-cylinder, liquid-cooled engine produces 35 kW of power and 55 N·m of torque, providing strong and responsive performance when you need it most.

With selectable 2WD/4WD, 265 mm of ground clearance, long-travel independent suspension, and aggressive 25-inch tires, the TCROSS 625 is ready for rough and unpredictable terrain.

Front and rear cargo racks, a 3,500 lb winch, and a 600 kg towing capacity add the versatility needed for serious work and extended adventures.

El Tigré

Vehicle Specs

TCROSSER 625
Engine type
Single Cylinder,4-Stroke
Engine Displacement
580
Cylinder bore × stroke
91×89.2
Fuel System
Electronic Fuel Injection
Max Power
35kW6500rpm
Max Torque
55N.m/6000rpm
Cooling System
Liquid Cooled
Starter
Electric
Transmission
CVT,L-H-N-R-P
Front/Rear Suspension
Double A-Arm Independent
Front/Rear Suspension Travel
180mm/220mm
Front Rim/Tires
Steel Wheel 25x8-12
Rear Rim/Tires
Steel Wheel 25x10-12
Shocks
Preloaded, Oil Damped
LengthxWidthxHeight
2215×1172×1260mm
Wheelbase(mm)
1460mm
Front Tread (mm)
969mm
Rear Tread (mm)
919mm
Ground Clearance
265mm
Winch
3500LBS
Rack Capacity
F:30kgs/R:60kgs
Battery
12V20AH
Fuel Capacity
23L
Dry weight
375kg
Curb Weight
400kg
Max Carrying Capacity
250kg
Gross Vehicle Weight
650kg
Towing Capacity
260kg/600kg
Max Speed
60km/h
Turning Radius
3m
Container Loading
26PCS/40HQ
Crate Dimensions
2320*1300*858
Gross Crate Weight
451kg
Net Weight
383kg
Certification
T3a,T3b
Container Loading
26PCS/40HQ
